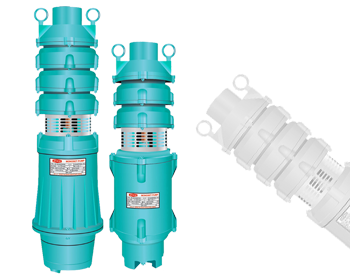

VERTICAL MULTISTAGE OPENWELL PUMP
Vertical Multistage Openwell Pump is designed to get the optimum output and to handle extensive voltage fluctuations while maintaining low noise and having long life with stable performance thruout the life span.
Compact and ascetic looks clubed with specially designed journal bushes for better cooling effect are few salient features which result in high level of performance and a trouble free product meant to deliver optinum results.
Download Performance data with product broucher from below...
Performance data obtained @ 2800 rpm | 380 - 415 V | Three Phase | 50 Hz | AC Supply
Performance data obtained @ 2800 rpm | 380 - 415 V | Three Phase | 50 Hz | AC Supply
VERTICAL MULTISTAGE OPENWELL PUMP
SALIENT FEATURES
Compact and good ascetic looks Specially designed journal bushes for better cooling effect Designed for extensive voltage fluctuation Low Noise
MATERIAL SPECIFICATION
PUMP'S MATERIAL SPECIFICATION
Motor Body - Graded Cast Iron Impeller - SS 410 / CI Volute - Cast Iron Shaft - SS 420 Journal Bearing Bush - Leaded Bronze Thrust Assembly - SS 410 with graphite fiber
TECHNICAL SPECIFICATION
PUMP'S TECHNICAL SPECIFICATION
Power Range - 2.2Kw - 5.5Kw (3HP - 20HP) Max Current (A) - 30A Speed (rpm) - 2880 Duty - S1 Max Total Head (m) - 120 Max Discharge - 900 lpm Nominal Outlet Size (inch) - 2 / 2.5 / 3 Max Starts per hour - 20 times
DOWNLOAD BROUCHER
